Lecture 07 Assembly Arithmetic and Control

Joseph Haugh

University of New Mexico

Recall: Assembly/Machine Code View

Programmer-Visible State
- PC: Address of next instruction
- Register file: Temporary storage
- Condition Codes: Special state for comparisons
- Memory
  - Byte addressable array
  - Code and user data
  - Stack to support procedures

CPU and Memory

Simple Memory Addressing Modes

Normal → (reg) → M[R[reg]]
- reg specifies memory address
- Pointer dereferencing in C
- movq (%rcx), %rax
Displacement → D(reg) → M[R[reg]+D]
- reg specifies start of memory region
- Constant displacement D specifies offset
- movq 8(%rbp), %rdx

Practice: Problem 3.2 and 3.3

Problem 3.2: Fill in the blank
- mov_ %eax, (%rsp)
- mov_ (%rax), %dx
- mov_ (%rdx), %rax
Problem 3.3: What is wrong with each
- movl %rax, (%rsp)
- movw (%rax), 4(%rsp)
- movq %rax, $0x123

Practice: Problem 3.2 and 3.3

Problem 3.2: Fill in the blank
- movl %eax, (%rsp)
- movw (%rax), %dx
- movq (%rdx), %rax
Problem 3.3: What is wrong with each
- movl %rax, (%rsp) is 64 bit
- movw (%rax), 4(%rsp) Memory to memory
- movl %eax, $0x123 dest. cannot be immediate

Example: Simple Addressing Modes

void swap (long *xp, long *yp)
{
  long t0 = *xp;
  long t1 = *yp;
  *xp = t1;
  *yp = t0;
}

swap:
   movq    (%rdi), %rax
   movq    (%rsi), %rdx
   movq    %rdx, (%rdi)
   movq    %rax, (%rsi)
   ret

More details on functions in sec. 3.7
For now just know that the first argument goes in %rdi and the second in %rsi

Understanding swap()

void swap (long *xp, long *yp)
{
  long t0 = *xp;
  long t1 = *yp;
  *xp = t1;
  *yp = t0;
}

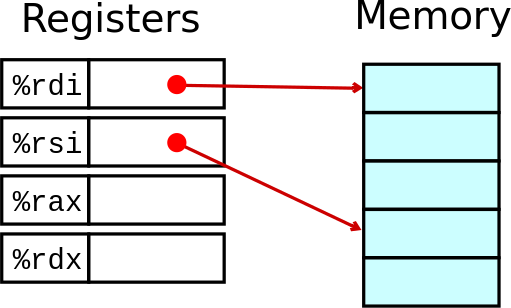

Registers to Memory

`%rdi`	xp
`%rsi`	yp
`%rax`	t0
`%rdx`	t1

swap:
   movq    (%rdi), %rax  # t0 = *xp
   movq    (%rsi), %rdx  # t1 = *yp
   movq    %rdx, (%rdi)  # *xp = t1
   movq    %rax, (%rsi)  # *yp = t0
   ret

Understanding swap()

swap 1

Understanding swap()

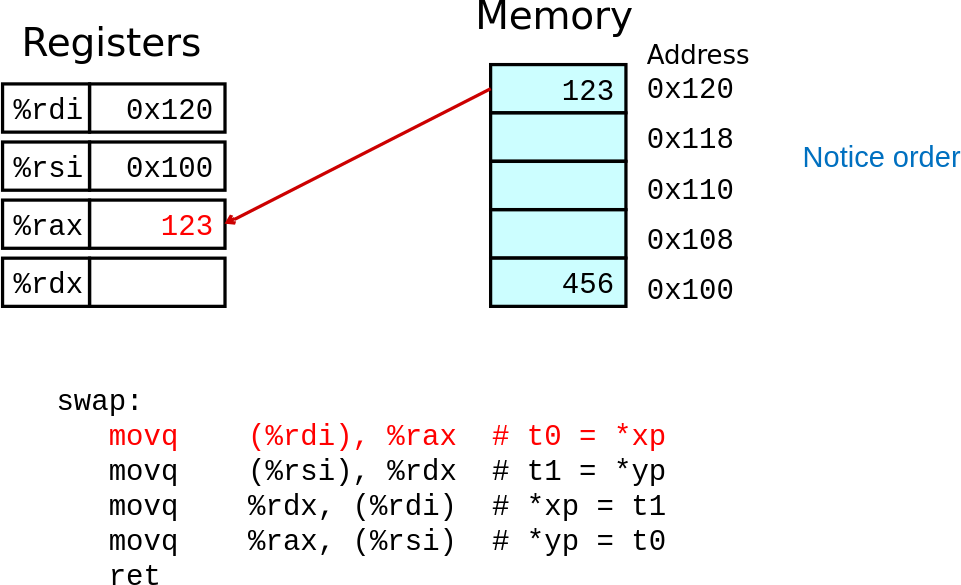

swap 2

Understanding swap()

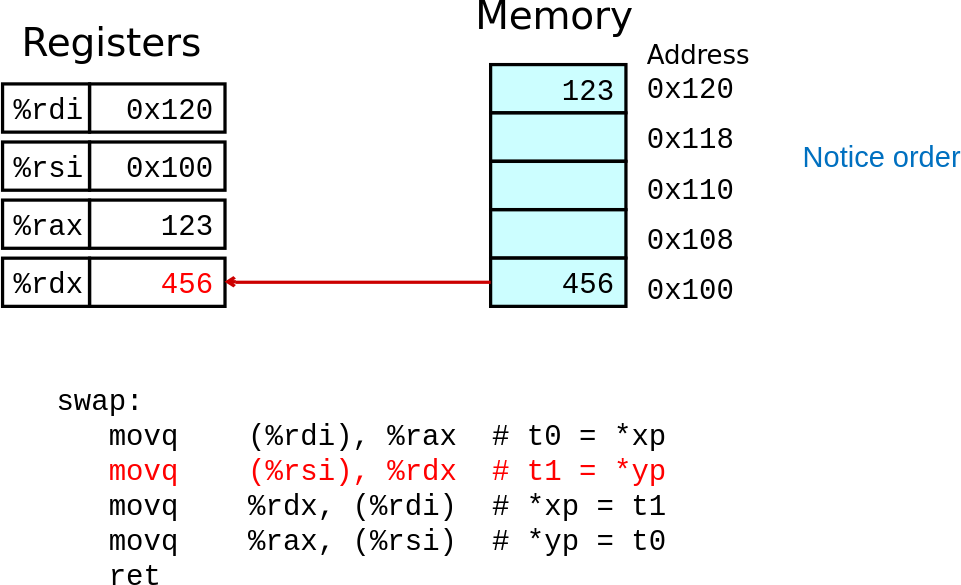

swap 3

Understanding swap()

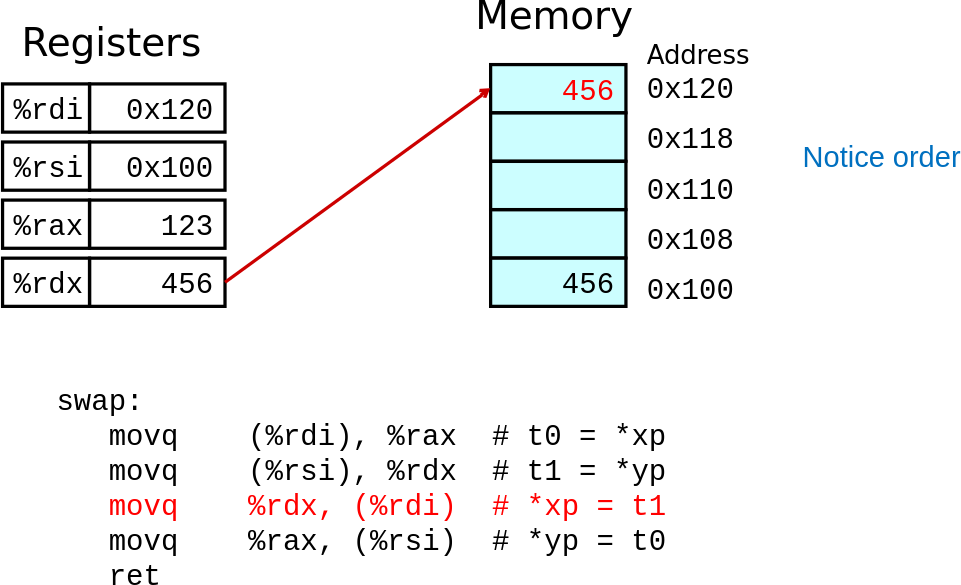

swap 4

Understanding swap()

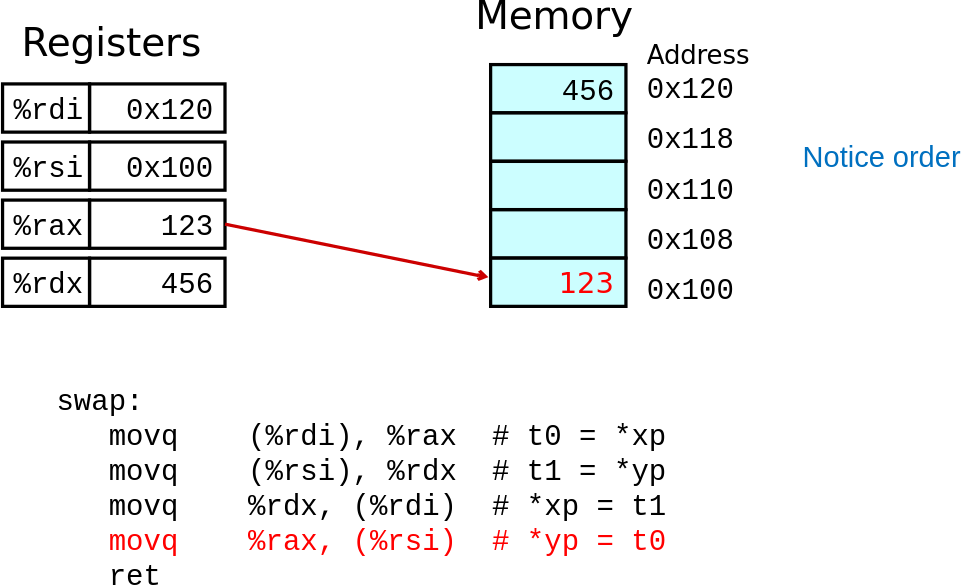

swap 5

Complete Memory Addressing Modes

Most general form:
- D(r_b, r_i, S) → M[R[r_b] + S * R[r_i] + D]
  - D: constant “displacement” of 1,2, or 4 bytes
  - r_b: Base register, any of 16 integer registers
  - r_i: Index register: any, except for %rsp
  - S: Scale: 1, 2, 4, or 8
Special Cases:
- (r_b, r_i) → M[R[r_b] + R[r_i]]
- D(r_b, ri) → M[R[r_b] + R[r_i] + D]
- (r_b, r_i, S) → M[R[r_b] + S * R[r_i]]

Practice: Address Computations

`%rdx`	`0xf000`
`%rcx`	`0x0100`

Expression	Address Computation	Address
$0x8(%rdx)
(%rdx,%rcx)
(%rdx,%rcx,4)
$0x80(,%rdx,2)

Practice: Address Computations

`%rdx`	`0xf000`
`%rcx`	`0x0100`

Expression	Address Computation	Address
$0x8(%rdx)	0xf000 + 0x8	0xf008
(%rdx,%rcx)	0xf000 + 0x100	0xf100
(%rdx,%rcx,4)	0xf000 + 4*0x100	0xf400
$0x80(,%rdx,2)	2*0xf000 + 0x80	0x1e080

Learning Objectives

After this session students should be able to:
- Describe the data movement instructions (sec 3.4)
- Describe arithmetic and logical instructions (sec 3.5)
- Read assembly code containing move instructions as generated by a compiler

Operation Groups

load effective address: leaq (variant of movq)
unary operations
binary operations
shifts
All the operations are listed in figure 3.10

Address Computation Instruction

leaq S, D (does not refer to memory at all, copies effective address to D)
S is an address mode expression
Set D to address denoted by expression. Must be a register
Uses:
- Computing addresses without a memory reference
  - E.g., translation of p = &x[i];
- Computing arithmetic expressions of the form x + k*y
  - k = 1, 2, 4, or 8
Example:

long m12(long x)
{
  return x * 12;
}

leaq (%rdi,%rdi,2), %rax # t <- x+x*2
salq $2, %rax            # return t<<2

Practice: Problem 3.6

%rax holds x and %rcx holds y

Instruction	Result
`leaq 6(%rax), %rdx`
`leaq (%rax,%rcx), %rdx`
`leaq (%rax,%rcx,4), %rdx`
`leaq 7(%rax,%rax,8), %rdx`

Practice: Problem 3.6

%rax holds x and %rcx holds y

Instruction	Result
`leaq 6(%rax), %rdx`	`6 + x`
`leaq (%rax,%rcx), %rdx`	`x + y`
`leaq (%rax,%rcx,4), %rdx`	`x + 4y`
`leaq 7(%rax,%rax,8), %rdx`	`7 + 9x`

Binary (two arg.) Arithmetic Operations

Format	Operands	Computation
addq	Src, Dest	Dest = Dest + Src
subq	Src, Dest	Dest = Dest - Src
imulq	Src, Dest	Dest = Dest * Src
salq	Src, Dest	Dest = Dest << Src (Also called shlq, 3 shifts use %cl)
sarq	Src, Dest	Dest = Dest >> Src (Arithmetic)
shrq	Src, Dest	Dest = Dest >> Src (Logical)
xorq	Src, Dest	Dest = Dest ^ Src
andq	Src, Dest	Dest = Dest & Src
orq	Src, Dest	Dest = Dest `\|` Src

Unary Arithmetic Operations

Format	Operands	Computation
incq	Dest	Dest = Dest + 1
decq	Dest	Dest = Dest - 1
negq	Dest	Dest = -Dest
notq	Dest	Dest = ~Dest

Practice: Problem 3.8

Address	Value	Register	Value
0x100	0xFF	%rax	0x100
0x108	0xAB	%rcx	0x1
0x110	0x13	%rdx	0x3
0x118	0x11

Instruction	Destination	Value
addq %rcx, (%rax)
subq %rdx, 8(%rax)
imulq $16, (%rax,%rdx,8)
incq 16(%rax)
decq %rcx
subq %rdx, %rax

Practice: Problem 3.8

Address	Value	Register	Value
0x100	0xFF	%rax	0x100
0x108	0xAB	%rcx	0x1
0x110	0x13	%rdx	0x3
0x118	0x11

Instruction	Destination	Value
addq %rcx, (%rax)	0x100	0x100
subq %rdx, 8(%rax)	0x108	0xA8
imulq $16, (%rax,%rdx,8)	0x118	0x110
incq 16(%rax)	0x110	0x14
decq %rcx	%rcx	0x0
subq %rdx, %rax	%rax	0xFD

Practice: Problem 3.9

Suppose we want to generate assembly code for the following C function:

long shift_left4_rightn
    (long x, long n)
{
  x <<= 4;
  x >>= n;
  return x;
}

Assembly code that performs the actual shifts and leaves the final value in register %rax. Parameters x and n are stored in registers %rdi and %rsi, respectively.

  long shift_left4_rightn(long x, long n)
  x in %rdi, n in %rsi
shift_left4_rightn:
  movq    %rdi, %rax  Get x
  ______________  x <<= 4
  movl    %esi, %ecx  Get n (4 bytes)
  ______________  x >>= n

Fill in the missing instructions, following the annotations on the right. The right shift should be performed arithmetically.

Practice: Problem 3.9

Suppose we want to generate assembly code for the following C function:

long shift_left4_rightn
    (long x, long n)
{
  x <<= 4;
  x >>= n;
  return x;
}

Assembly code that performs the actual shifts and leaves the final value in register %rax. Parameters x and n are stored in registers %rdi and %rsi, respectively.

  long shift_left4_rightn(long x, long n)
  x in %rdi, n in %rsi
shift_left4_rightn:
  movq    %rdi, %rax  Get x
  salq $4, %rax   x <<= 4
  movl    %esi, %ecx  Get n (4 bytes)
  sarq %cl, %rax  x >>= n

Fill in the missing instructions, following the annotations on the right. The right shift should be performed arithmetically.

Practice: Problem 3.11

It is common to find assembly-code lines of the form:

xorq %rdx %rdx

In code that was generated from C where no exclusive-or operations were present.

Explain the effect of this particular exclusive-or instruction and what useful operation it implements.
What would be the more straightforward way to express this operation in assembly code?
Compare the number of bytes to encode these two different implementations of the same operation.

Practice: Problem 3.11

It is common to find assembly-code lines of the form:

xorq %rdx %rdx

In code that was generated from C where no exclusive-or operations were present.

Explain the effect of this particular exclusive-or instruction and what useful operation it implements.

Sets %rdx to 0

What would be the more straightforward way to express this operation in assembly code?

movq $0 %rdx

Compare the number of bytes to encode these two different implementations of the same operation.

xorq only requires 3 bytes whereas movq requires 7.

Example: Arithmetic Expression

long arith (long x, long y, long z) {
  long t1 = x+y;
  long t2 = z+t1;
  long t3 = x+4;
  long t4 = y * 48;
  long t5 = t3 + t4;
  long rval = t2 * t5;
  return rval;
}

arith:
  leaq    (%rdi,%rsi), %rax    # t1
  addq    %rdx, %rax           # t2
  leaq    (%rsi,%rsi,2), %rdx  # 3y
  salq    $4, %rdx             # t4 (y * 16)
  leaq    4(%rdi,%rdx), %rcx   # t5
  imulq   %rcx, %rax           # rval
  ret

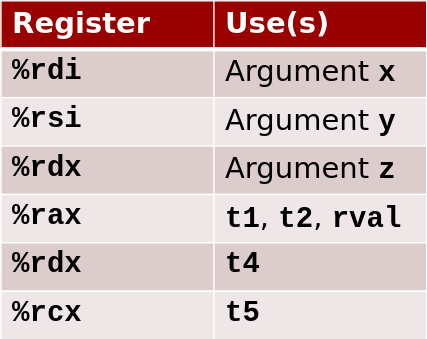

Registers
