Learning Objectives

• Describe condition codes (sec. 3.6.1)
• Summarize how to set and use condition codes
• Describe how are conditional branches implemented in assembly code (If-then-else statements)
• Describe and practice the translation of loops and the switch statement into assembly code

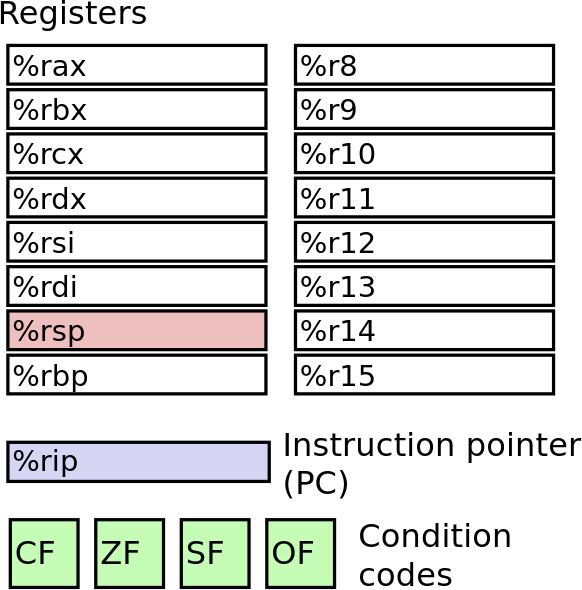

Processor State (x86-64, Partial)

Implicitly Setting Condition Codes

• Single bit registers:
  • CF, carry flag (unsigned) | SF, sign flag (signed)
  • ZF, zero flag | OF, overflow flag (signed)
• Implicitly set (think of it as side effect) by arithmetic operations
• Example: addqSrc, Dest ↔︎ t = a + b
  • CF set if carry out from most significant bit (unsigned overflow)
  • ZF set if t == 0
  • SF set if t < 0 (as signed)
  • OF set if two’s-complement (signed) overflow
    • (a>0 && b>0 && t<0) || (a<0 && b<0 && t>=0)
• Not set by leaq instruction

Explicitly Setting Condition Codes

• Two instructions:
  • cmp_
  • test_
  • Full set of 8 instructions is in fig 3.13

Compare Instruction

• Explicit Setting by Compare Instruction:
  • cmpq b,a like computing a-b without setting destination
• CF set if carry out from most significant bit (used for unsigned comparisons)
• ZF set if a == b
• SF set if (a-b) < 0 (as signed)
• OF set if two’s-complement (signed) overflow
  • (a>0 && b<0 && (a-b)<0) || (a<0 && b>0 && (a-b)>0)

Test Instruction

• Explicit Setting by Test instruction:
• testq b,a like computing a&b without setting destination
• Sets condition codes based on value of b&a
• Useful to have one of the operands be a mask
• ZF set when a&b == 0
• SF set when a&b < 0

Reading Condition Codes

Learning Objectives

• Describe condition codes (sec. 3.6.1)
• Summarize how to set and use condition codes
• Describe how are conditional branches implemented in assembly code (If-then-else statements)
• Describe and practice the translation of loops and the switch statement into assembly code

Reading Condition Codes

int gt (long x, long y)
{
  return x > y;
}

cmpq   %rsi, %rdi   # Compare (x-y)
setg   %al          # Set when >
movzbl %al, %eax    # Zero rest of %rax
ret

Practice: Problem 3.13 A

int comp(data_t a, data_t b) {
  return a COMP b;
}

cmpl %esi, %edi
setl %al

Practice: Problem 3.13 A

int comp(data_t a, data_t b) {
  return a COMP b;
}

cmpl %esi, %edi  # a - b
setl %al         # if a < b,
                 # set first byte of %rax

Practice: Problem 3.13 B

int comp(data_t a, data_t b) {
  return a COMP b;
}

cmpw  %si, %di
setge %al

Practice: Problem 3.13 B

int comp(data_t a, data_t b) {
  return a COMP b;
}

cmpw  %si, %di # a -b
setge %al      # if a >= b,
               # set first byte of %rax

Practice On Your Own

• Rest of 3.13
• 3.14
  • Note that 3.14 D has an error so check the errata

Summary: Condition Codes

• Ultimate goal of the condition code (CC) registers: implement conditional branches in the assembly code
• So, instead of reading them directly, they are used to:
  • set a single byte to 0 or 1, depending on a combination of CCs (sec. 3.6.2)
  • conditional jump to some other part of the program (sec. 3.6.3 to 3.6.5)
  • conditional transfer (move) of data (sec. 3.6.6)

Summary: Condition Codes

• Four single-bit condition code registers
  • CF, ZF, SF, and OF
• These are set after an arithmetic or logical operation is executed (applies to the most recent)
• Except for leaq all instructions in fig. 3.10 p. 192 set the condition codes
• Special cases:
  • Logical ops. set CF and OF to zero
  • shift ops. CF set to the last bit shifted out and OF to 0
  • INC and DEC ops. set OF and ZF, leave CF unchanged

Jumping

Direct vs Indirect Jumps

• A direct jump is a jump to a label in your code

    movq $0,%rax      # Set %rax to 0
    jmp .L1           # Goto .L1
    movq (%rax), %rdx # Null pointer dereference (skipped)
  .L1:
    popq %rdx         # Jump target

• An indirect jump is a jump

  • Uses a * before the argument

  jmp *%rax   # jump to the value in %rax
  jmp *(%rax) # jump to the value in memory at the address in %rax

Jump Instruction Encoding

• How jump instructions are encoded will become very important in chapter 7
• Jumps can be encoded in two different ways:
  • Absolute: the address to jump to is given directly using 4 bytes
  • PC Relative: the address to jump to is encoded using the difference between the target address and the address of the next instruction

PC Relative

• True jump target encoded as: jmp target + next address

1	  movq	%rdi, %rax
2	  jmp	.L2
3	.L3:
4	  sarq	%rax
5	.L2:
6	  testq	%rax, %rax
7	  jg	.L3
8	  rep; ret

1	0:	48 89 f8	mov	%rdi,%rax
2	3:	eb 03		jmp	8 <loop+0x8>
3	5:	48 d1 f8	sar	%rax
4	8:	48 85 c0	test %rax,%rax
5	b:	7f f8		jg	5 <loop+0x5>
6	d:	f3 c3		repz retq

• First jump: 0x03 + 0x05 = 0x08
• Second jump: 0xf8 + 0x0d = 0x05

Practice: Problem 3.15

• What is the target of the je instruction below?

4003fa: 74 02   je XXXXXX
4003fc: ff d0   callq *%rax

Practice: Problem 3.15

• What is the target of the je instruction below?
  • 4003fc + 2 = 4003fe

4003fa: 74 02   je 4003fe
4003fc: ff d0   callq *%rax

Practice: Problem 3.15

• What is the target of the je instruction below?

40042f: 74 f4    je XXXXXX
400431: 5d       pop  %rbp

Practice: Problem 3.15

• What is the target of the je instruction below?
  • 400431 + f4 = 400425
  • 0xf4 = -12
  • 400431 - C

4003fa: 74 02   je 400425
4003fc: ff d0   callq *%rax

Practice: Problem 3.15

• What is the address of the je and pop instruction below?

XXXXXX: 77 02   je 400547
YYYYYY: 5d      pop %rbp

Practice: Problem 3.15

• What is the target of the je instruction below?
  • YYYYYY + 2 = 400547 thus, YYYYYY = 400545
  • XXXXXX = 400545 - 2 = 4000543 (why - 2?)

XXXXXX: 77 02   je 400547
YYYYYY: 5d      pop %rbp

Learning Objectives

• Describe condition codes (sec. 3.6.1)
• Summarize how to set and use condition codes
• Describe how are conditional branches implemented in assembly code (If-then-else statements)
• Describe and practice the translation of loops and the switch statement into assembly code

Conditional Branching

• Generating:

  b146> gcc –Og -S –fno-if-conversion control.c

long absdiff (long x, long y)
{
  long result;
  if (x > y)
    result = x-y;
  else
    result = y-x;
  return result;
}

absdiff:
  cmpq    %rsi, %rdi # x - y
  jle     .L2
  movq    %rdi, %rax
  subq    %rsi, %rax
  ret
.L2:                 # x <= y
  movq    %rsi, %rax
  subq    %rdi, %rax
  ret

Expressing With Goto

• C has a goto statement
• Jump to position designated by label

long absdiff (long x, long y)
{
  long result;
  if (x > y)
    result = x-y;
  else
    result = y-x;
  return result;
}

long absdiff_j (long x, long y)
{
    long result;
    int ntest = x <= y;
    if (ntest) goto Else;
    result = x-y;
    goto Done;
 Else:
    result = y-x;
 Done:
    return result;
}

If-Then-Else Translation

if (test-expr) {
  then-stmts
}
else {
  else-stmts
}

  t = test-expr;
  if (!t)
    goto False;
  then-stmts
  goto Done;
False:
  else-stmts
Done:
  ...

Practice Problems

• Problem 3.16
• Problem 3.17
• Problem 3.18

Alternative Translation

• When we are doing an if to conditionally set a variable, we can instead opt to use a conditional move
• Fig. 3.18 lists conditional move instructions
• Should only be used in restricted cases as it can have undesirable results. See bad cases slide for more details

General Conditional Expression Translation: Using Branches

val = test-expr ? then-expr : else-expr;

  t = !test-expr
  if (t)
    goto Else;
  val = then-expr;
  goto Done;
Else:
  val = else-expr;
Done:
  ...

General Conditional Expression Translation: Using Conditional Moves

val = test-expr ? then-expr : else-expr;

result = then-expr;
eval = else-expr;
nt = !test-expr
if (nt) result = eval;
return result;

Conditional Move Example

long absdiff (long x, long y)
{
    long result;
    if (x > y)
        result = x-y;
    else
        result = y-x;
    return result;
}

absdiff:
   movq    %rdi, %rax  # x
   subq    %rsi, %rax  # result = x-y
   movq    %rsi, %rdx
   subq    %rdi, %rdx  # eval = y-x
   cmpq    %rsi, %rdi  # x:y
   cmovle  %rdx, %rax  # if <=, result = eval
   ret

Bad Cases For Conditional Move

• Expensive Computations:

  val = Test(x) ? Hard1(x) : Hard2(x);

  • Makes sense when computations are simple

• Risky Computations

  val = p ? *p : 0;

  • May have undesirable effects

• Computations With Side Effects

  val = x > 0 ? x *= 7 : x += 3;

  • Must be side effect free

Practice: Problem 3.21
