Free Recall

• Get out a sheet of paper or open a text editor
• For 2 minutes write down whatever comes to mind about the last class
  • This could be topics you learned
  • Questions you had
  • Connections you made

A Weather Monitoring Application

• We have a weather station with humidity, temperature, and pressure sensors
• We are implementing a Weather Data object that pulls data from the weather station.
• Create an app that uses the Weather Data object to update three different displays:
  • current conditions
  • weather stats
  • forecast

Problem Specification

• The WeatherData class has getters and setters for temperature, humidity, and pressure
• The measurementsChanged() method is called anytime new weather data is available
• We don’t know or care how!
• We need to implement three different display elements that use the weather data
• The system must be expandable, in case others want to add other display elements later

A First Attempt At Coding

public class WeatherData {
    //instance variable declarations

    public void measurementsChanged() {
        float temp = getTemperature();
        float humidity = getHumidity();
        float pressure = getPressure();
        currentConditionsDisplay.update(temp, humidity, pressure);
        statisticsDisplay.update(temp, humidity, pressure);
        forecastDisplay.update(temp, humidity, pressure);
    }
    // other methods
}

• What’s wrong?

A First Attempt At Coding

public class WeatherData {
    //instance variable declarations

    public void measurementsChanged() {
        float temp = getTemperature();
        float humidity = getHumidity();
        float pressure = getPressure();
        currentConditionsDisplay.update(temp, humidity, pressure);
        statisticsDisplay.update(temp, humidity, pressure);
        forecastDisplay.update(temp, humidity, pressure);
    }
    // other methods
}

• What’s wrong?
• Coding to implementations: adding displays requires changing the program

A First Attempt At Coding

public class WeatherData {
    //instance variable declarations

    public void measurementsChanged() {
        float temp = getTemperature();
        float humidity = getHumidity();
        float pressure = getPressure();
        currentConditionsDisplay.update(temp, humidity, pressure);
        statisticsDisplay.update(temp, humidity, pressure);
        forecastDisplay.update(temp, humidity, pressure);
    }
    // other methods
}

• What’s wrong?
• Coding to implementations: adding displays requires changing the program
• Encapsulate things that change!

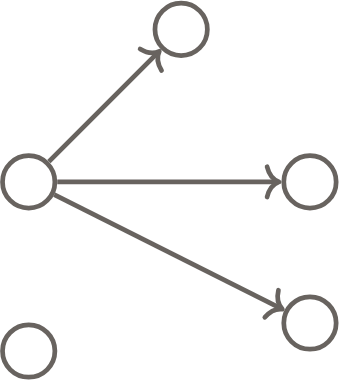

Publish/Subscribe

The Observer Pattern

• The Observer Pattern defines a one-to-many dependency between objects so that when one object changes state, all its dependencies are notified and updated automatically.

The Observer Pattern Vocabulary

• If you understand how newspaper subscriptions work then you basically already understand the observer pattern.
• However, instead saying publisher as we would in the newspaper example we instead say Subject and instead of saying subscribers we say Observers

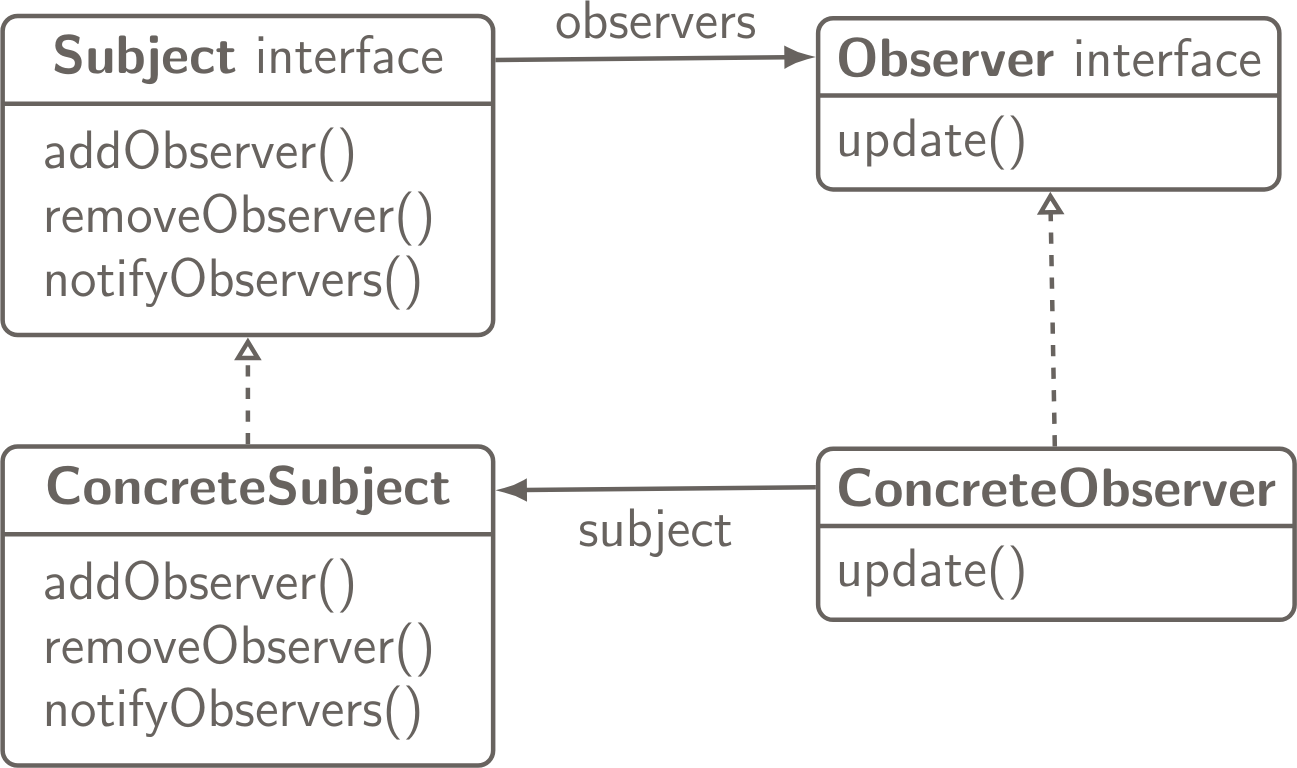

The Observer Pattern

The Observer Pattern

• Objects use the Subject interface to (de)register as observers
• Each subject can have many observers
• All potential observers need to implement the Observer interface and provide the update() method
• A concrete subject always implements the Subject interface and the notifyObservers() method
• Concrete observers can be any class that implements the Observer interface and registers with a concrete subject

The Power of Loose Coupling

Weather Data Interfaces

public interface Subject {
    public void registerObserver(Observer o);
    public void removeObserver(Observer o);
    public void notifyObservers();
}

public interface Observer {
    public void update(float temp,
                       float humidity,
                       float pressure);
}

public interface DisplayElement {
    public void display();
}

Implementing The Subject Interface

public class WeatherData implements Subject {
    private List<Observer> observers;
    private float temperature;
    private float humidity;
    private float pressure;

    public WeatherData() {
        observers = new ArrayList<>();
    }

    public void registerObserver(Observer o) {
        observers.add(o);
    }

    public void removeObserver(Observer o) {
        observers.remove(o);
    }
}

Notify Methods

public void notifyObservers() {
    for(Observer observer : observers) {
        observer.update(temperature, humidity, pressure);
    }
}

public void measurementsChanged() {
    notifyObservers();
}

A Display Element

public class CurrentConditionsDisplay
  implements Observer, DisplayElement {
    private float temperature;
    private float humidity;
    private Subject weatherData;
    public CurrentConditionsDisplay(Subject weatherData) {
        this.weatherData = weatherData;
        weatherData.registerObserver(this);
    }
    public void update(float temp, float humidity, float pressure) {
        this.temperature = temp;
        this.humidity = humidity;
        display();
    }
    public void display() {
        System.out.println("Current conditions: " + temperature
            + "F degrees and " + humidity + "% humidity");
    }
}

Java’s Built-In Observer Pattern

• Java provides the Observer interface and the Observable class in the package java.util
  • Similar to Subject and Observer
  • Must extend Observable rather than implement Subject

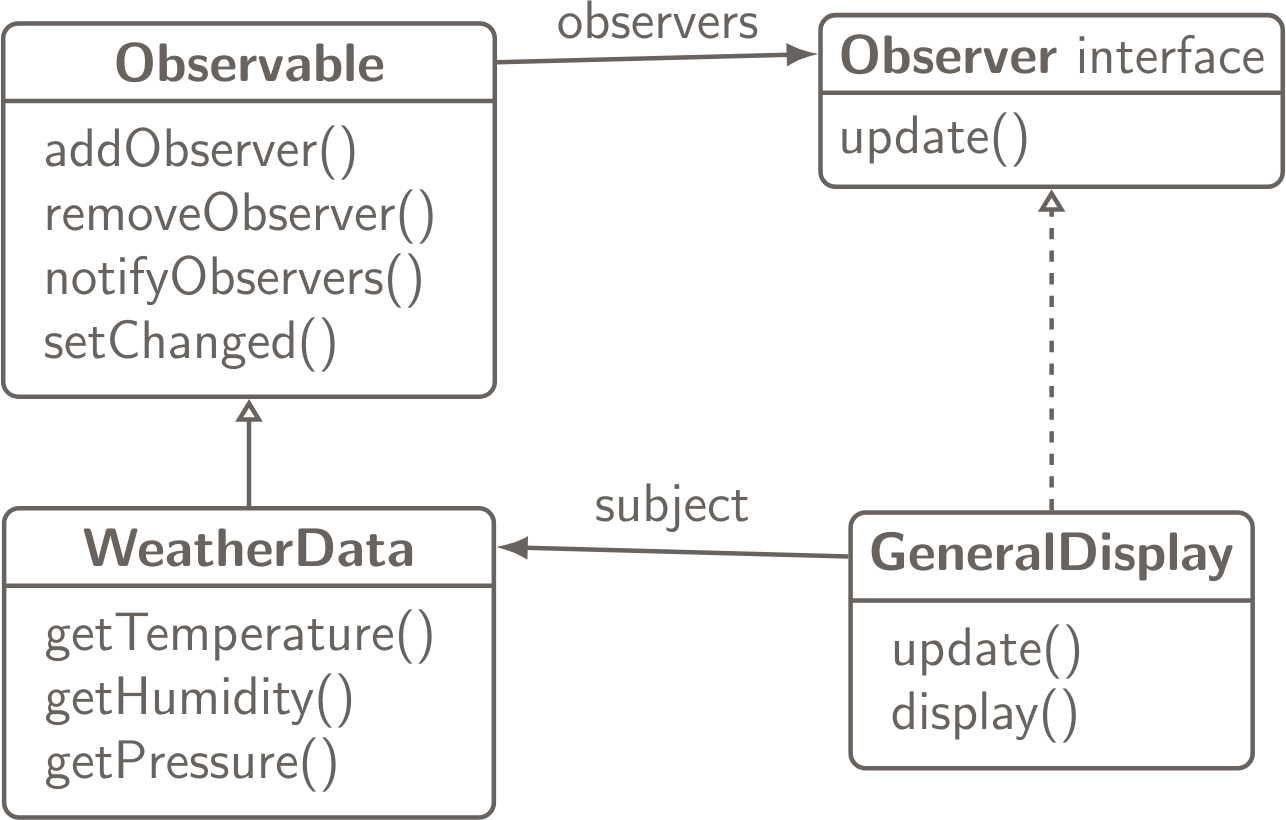

Another Design…

The Java Observer Pattern

• For an object to become an observer
• Just implement the Observer interface (as before)
• For the observable to send notifications
• Become observable by extending the java.util.Observable superclass
• Call the setChanged() method to signify that the state of the object has changed
• Call one of two notification methods:
  • notifyObservers()
  • notifyObservers(Object arg)

The Dark Side of Java Observables

• Observable is a class, not an interface
  • You have to subclass it, so you can’t add the Observable behavior onto a class that already extends something else
  • Limits reuse potential
  • Because there’s no Observable interface, you cannot create your own implementations of Observables
• Observable protects crucial methods
  • E.g., setChanged() can only be called by subclasses
  • Limits flexibility
  • You cannot favor composition over inheritance

Should I Use Java Observables?

• Short Answer: NO
• Java’s Observable library was deprecated in Java 9
• This does not mean that the observer pattern is deprecated just that this particular implementation is
• What should you use instead?
• You can roll your own implementation to have more flexibility and control
• Use PropertyChangeSupport/Listener from java.beans but with many caveats

What Is A Bean?

What Is Serializable?

Risks Of Serializing

What About Observable Then?

• So then what is the best way to implement this pattern?
• Let’s go into some code, you can download it here
• You will quickly see why no builtin will ever suffice because we have so many options!
