Screen dumps from tkisem

All images are screen dumps from an 800x600 X11 display. These images illustrate tkisem 4.2.

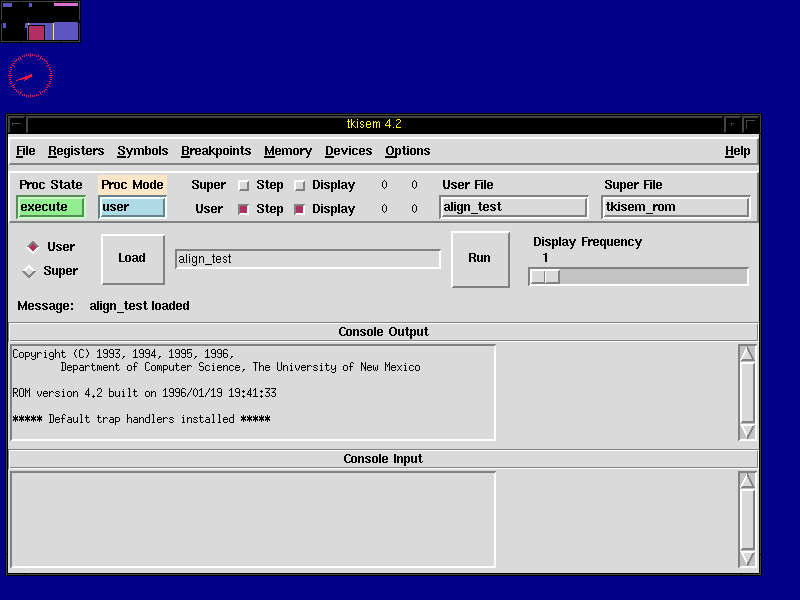

The main window

This screen dump illustrates the main window of tkisem, just after the user file "align_test" has been loaded.
a picture of the main window

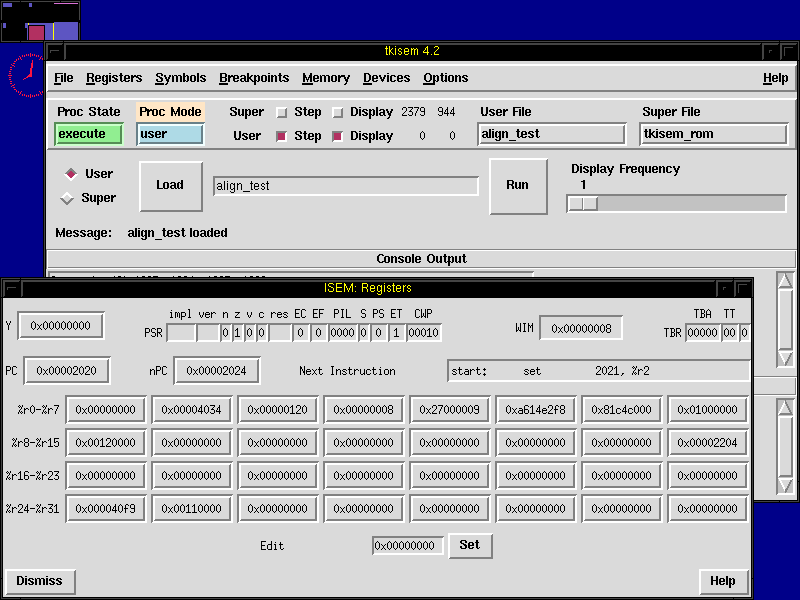

The register display window

This screen dump illustrates the register display window of tkisem. This window displays the registers of the SPARC integer unit along with the next instruction to be executed.
a picture of the register display window

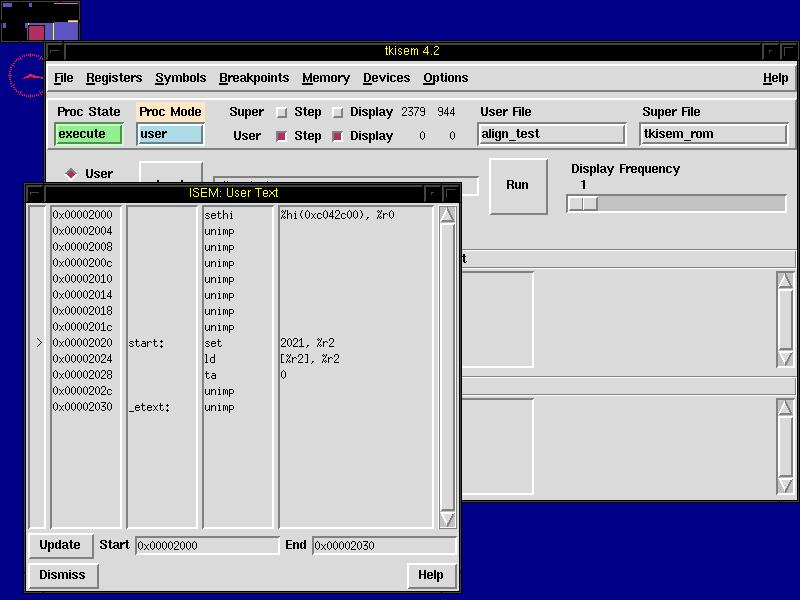

The text display window

This screen dump illustrates the text display window of tkisem. The leftmost column in this display shows the current value of the PC (using the symbol '>') and any breakpoints that have been set (using the symbol 'B').
a picture of the text display window

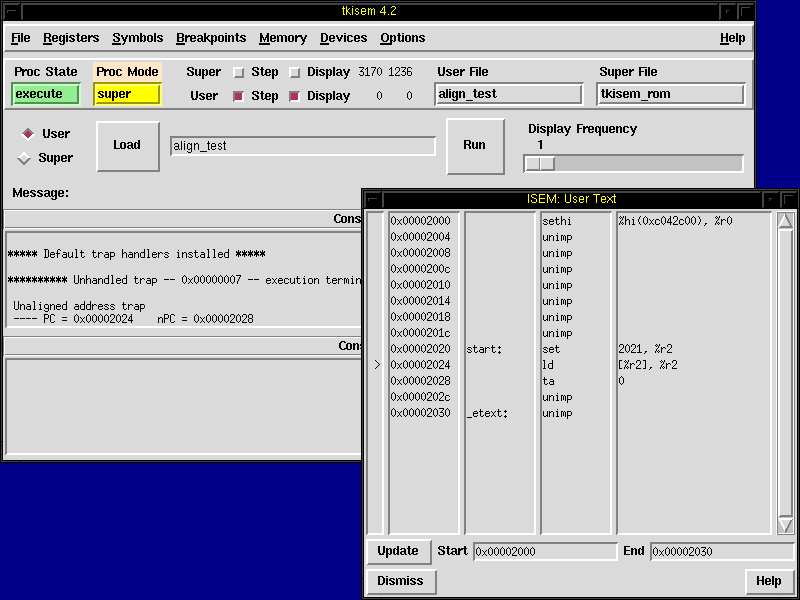

A sample error

This screen dump illustrates a sample error, in this case, an unaligned memory reference. When the user code executes an illegal instruction, the rom code prints an error message on the consol. Note that the PC shown in the text display window has been updated.
a picture of the main window

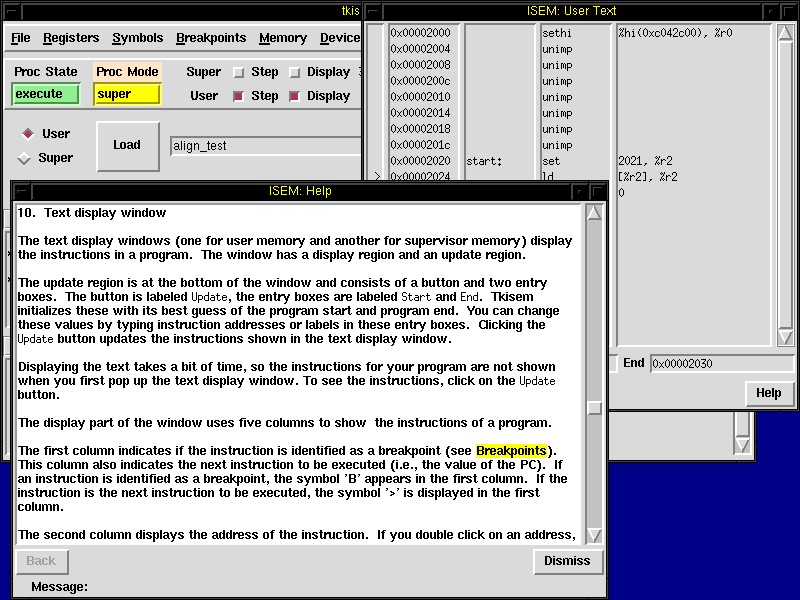

The help window

This screen dump illustrates the help window. The help system consists of single file with embedded links. Users can follow links in the file (links have a yellow background) or use the "Help" buttons on the various tkisem windows to jump around in the help file.
a picture of the help window

Barney Maccabe Last modified: Thu Mar 19 15:24:30 MST 1998
