The Bomb

That was Shannon’s debt. What he did next demonstrated his ambition. Every system of communication—not just the ones existing in 1948, not just the ones made by human hands, but every system conceivable—could be reduced to a radically simple essence.

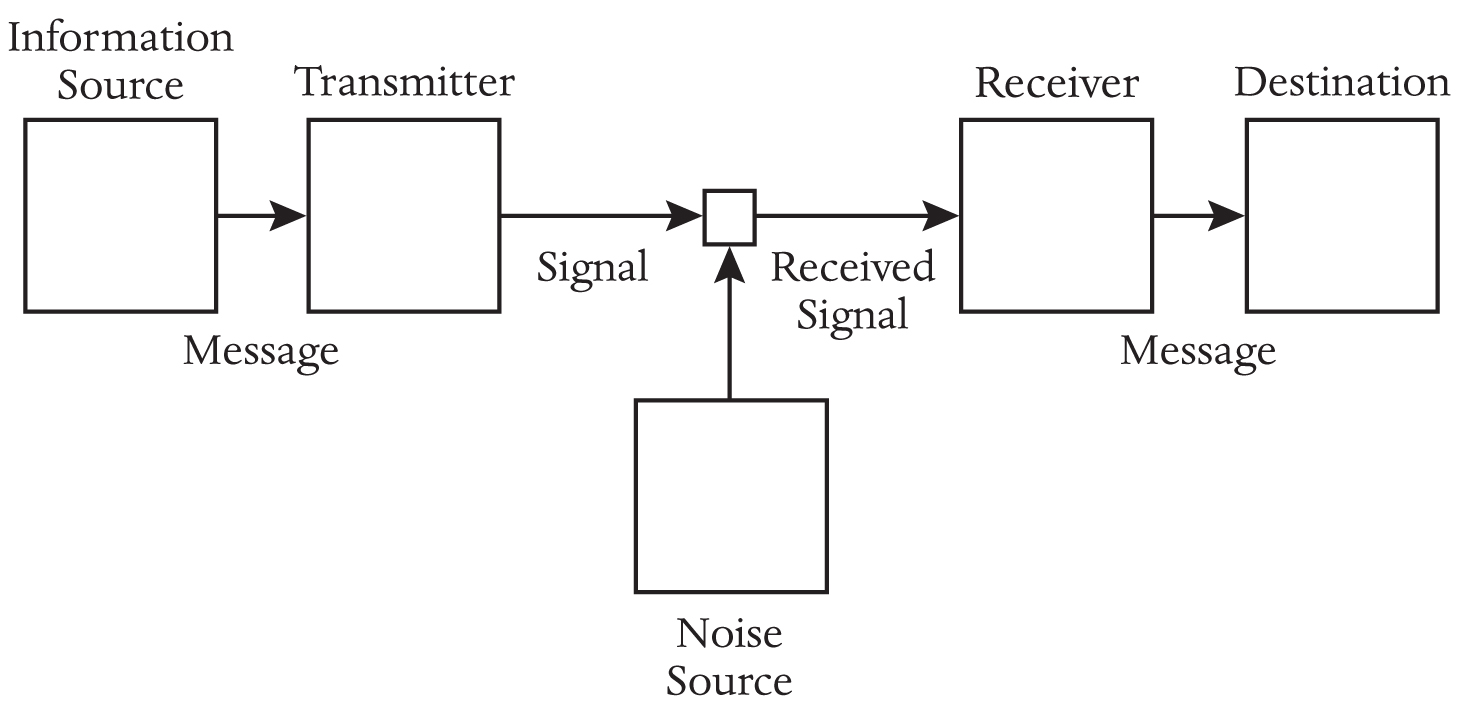

• The information source produces a message.

• The channel is the medium through which the signal passes.

• The noise source represents the distortions and corruptions that afflict the signal on its way to the receiver.

• The receiver decodes the message, reversing the action of the transmitter.

• The destination is the recipient of the message.

The beauty of this stripped-down model is that it applies universally. It is a story that messages cannot help but play out—human messages, messages in circuits, messages in the neurons, messages in the blood. You speak into a phone (source); the phone encodes the sound pressure of your voice into an electrical signal (transmitter); the signal passes into a wire (channel); a signal in a nearby wire interferes with it (noise); the signal is decoded back into sound (receiver); the sound reaches the ear at the other end (destination).

It is wartime. Allied headquarters plans an assault on the enemy beaches (source); staff officers turn the plan into a written order (transmitter); copies of the order are sent to the front lines, by radio or courier or carrier pigeon (channel); headquarters has deliberately scrambled the message, encrypting it to look as random as possible (a kind of artificial “noise”); one copy reaches the Allies on the front lines, who remove the encryption with the help of a key and translate it into a battle plan, but another copy is intercepted by the enemy, whose cryptanalysts crack the code for themselves (receiver); the order issued at headquarters, and intercepted by the enemy, has turned into a strategy and counterstrategy for the battle to come (destination).

Breaking down the act of communication into these universal steps enabled Shannon to home in on each step in isolation—to consider in turn what we do when we select our messages at the source, or how the struggle against noise can be fought and won in the channel. Imagining the transmitter as a distinct conceptual box proved to be especially pivotal: as we will see, the work of encoding messages for transmission turned out to hold the key to Shannon’s most revolutionary result. When we remember that Shannon’s mind was often at its best in the presence of outrageous analogies (as, earlier, between Boole’s logic and a box of switches), we can observe how this universal structure might serve as a tool for bringing promising analogies to light.

New sciences demand new units of measurement—as if to prove that the concepts they have been talking and talking around have at last been captured by number. The new unit of Shannon’s science was to represent this basic situation of choice. Because it was a choice of 0 or 1, it was a “binary digit.” In one of the only pieces of collaboration Shannon allowed on the entire project, he put it to a lunchroom table of his Bell Labs colleagues to come up with a snappier name. Binit and bigit were weighed and rejected, but the winning proposal was laid down by John Tukey, a Princeton professor working at Bell. Bit.

Some choices are like this. But not all coins are fair. Not all options are equally likely. Not all messages are equally probable.

So think of the example at the opposite extreme: Think of a coin with two heads. Toss it as many times as you like—does it give you any information? Shannon insisted that it does not. It tells you nothing that you do not already know: it resolves no uncertainty.

What does information really measure? It measures the uncertainty we overcome. It measures our chances of learning something we haven’t yet learned. Or, more specifically: when one thing carries information about another—just as a meter reading tells us about a physical quantity, or a book tells us about a life—the amount of information it carries reflects the reduction in uncertainty about the object. The messages that resolve the greatest amount of uncertainty—that are picked from the widest range of symbols with the fairest odds—are the richest in information. But where there is perfect certainty, there is no information: there is nothing to be said.

“Do you swear to tell the truth, the whole truth, and nothing but the truth?” How many times in the history of courtroom oaths has the answer been anything other than “Yes”? Because only one answer is really conceivable, the answer provides us with almost no new information—we could have guessed it beforehand. That’s true of most human rituals, of all the occasions when our speech is prescribed and securely expected (“Do you take this man . . . ?”). And when we separate meaning from information, we find that some of our most meaningful utterances are also our least informative.

We might be tempted to fixate on the tiny number of instances in which the oath is denied or the bride is left at the altar. But in Shannon’s terms, the amount of information at stake lies not in one particular choice, but in the probability of learning something new with any given choice. A coin heavily weighted for heads will still occasionally come up tails—but because the coin is so predictable on average, it’s also information-poor.

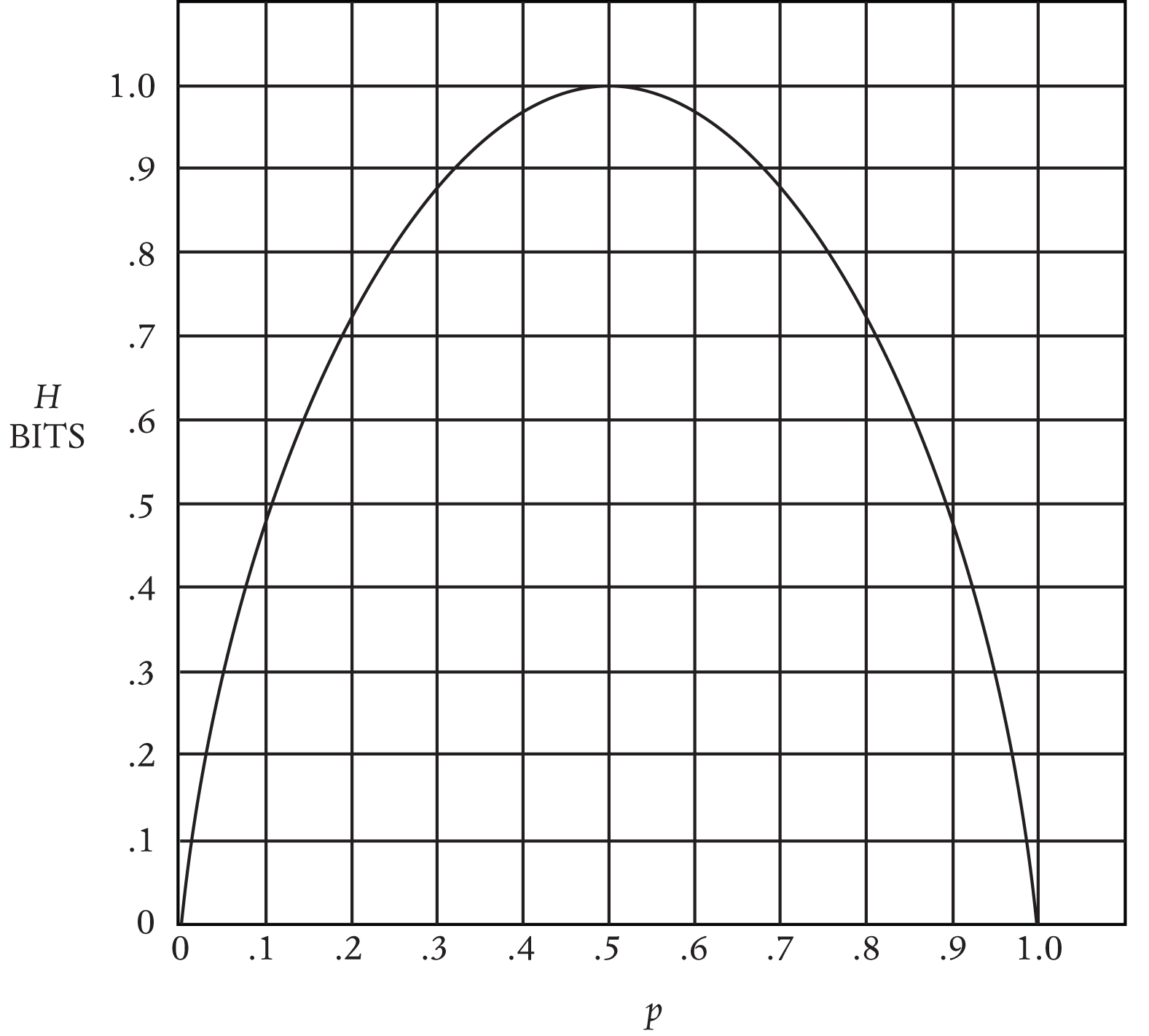

Still, the most interesting cases lie between the two extremes of utter uncertainty and utter predictability: in the broad realm of weighted coins. Nearly every message sent and received in the real world is a weighted coin, and the amount of information at stake varies with the weighting. Here, Shannon showed the amount of information at stake in a coin flip in which the probability of a given side (call it p) varies from 0 percent to 50 percent to 100 percent:

H = -p log p – q log q

Difficult or not, it was new, and it revealed new possibilities for transmitting information and conquering noise. We can turn unfair odds to our favor.

This was the hunch that Shannon had suggested to Hermann Weyl in Princeton in 1939, and which he had spent almost a decade building into theory: Information is stochastic. It is neither fully unpredictable nor fully determined. It unspools in roughly guessable ways. That’s why the classic model of a stochastic process is a drunk man stumbling down the street. He doesn’t walk in the respectably straight line that would allow us to predict his course perfectly. Each lurch looks like a crapshoot. But watch him for long enough and we’ll see patterns start to emerge from his stumble, patterns that we could work out statistically if we cared to. Over time, we’ll develop a decent estimation of the spots on the pavement on which he’s most likely to end up; our estimates are even more likely to hold if we begin with some assumptions about the general walking behavior of drunks. For instance, they tend to gravitate toward lampposts.

There are equal odds for each character, and no character exerts a “pull” on any other. This is the printed equivalent of static. This is what our language would look like if it were perfectly uncertain and thus perfectly informative.

OCRO HLI RGWR NMIELWIS EU LL NBNESEBYA TH EEI ALHENHTTPA OOBTTVA NAH BRL.

ON IE ANTSOUTINYS ARE T INCTORE ST BE S DEAMY ACHIN D ILONASIVE TUCOOWE AT TEASONARE FUSO TIZIN ANDY TOBE SEACE CTISBE.

Out of nothing, a stochastic process has blindly created five English words (six, if we charitably supply an apostrophe and count ACHIN’). “Third-order approximation,” using the same method to search for trigrams, brings us even closer to passable English:

IN NO IST LAT WHEY CRATICT FROURE BIRS GROCID PONDENOME OF DEMONSTURES OF THE REPTAGIN IS REGOACTIONA OF CRE.

REPRESENTING AND SPEEDILY IS AN GOOD APT OR COME CAN DIFFERENT NATURAL HERE HE THE A IN CAME THE TO OF TO EXPERT GRAY COME TO FURNISHES THE LINE MESSAGE HAD BE THESE.

Even further, our choice of the next word is strongly governed by the word that has just gone before. Finally, then, Shannon turned to “second-order word approximation,” choosing a random word, flipping forward in his book until he found another instance, and then recording the word that appeared next:

THE HEAD AND IN FRONTAL ATTACK ON AN ENGLISH WRITER THAT THE CHARACTER OF THIS POINT IS THEREFORE ANOTHER METHOD FOR THE LETTERS THAT THE TIME OF WHO EVER TOLD THE PROBLEM FOR AN UNEXPECTED.

It turns out that some of the most childish questions about the world—“Why don’t apples fall upwards?”—are also the most scientifically productive. If there is a pantheon of such absurd and revealing questions, it ought to include a space for Shannon’s: “Why doesn’t anyone say XFOML RXKHRJFFJUJ?” Investigating that question made clear that our “freedom of speech” is mostly an illusion: it comes from an impoverished understanding of freedom. Freer communicators than us—free, of course, in the sense of uncertainty and information—would say XFOML RXKHRJFFJUJ. But in reality, the vast bulk of possible messages have already been eliminated for us before we utter a word or write a line. Or, to alter just slightly one of the fortuitous sequences that emerged by chance on Shannon’s notepad: THE LINE MESSAGE HAD [TO] BE THESE.

Still, who cares about letter frequencies?

53‡‡†305))6*;4826)4‡.)4‡);806*;48†8’60))85;]8*:‡*8†83
(88)5*†;46(;88*96*?;8)*‡(;485);5*†2:*‡(;4956*2(5*-4)8’8*; 4069285);)6†8)4‡‡;1(‡9;48081;8:8‡1;48†85;4)485†528806*81
(‡9;48;(88;4(‡?34;48)4‡;161;:188;‡?;

He began, as all good codebreakers did, by counting frequencies. The symbol “8” occurred more than any other, 33 times. This small fact was the crack that brought the entire structure down. Here, in words that captivated Shannon as a boy, is how Mr. Legrand explained it:

As our predominant character is 8, we will commence by assuming it as the e of the natural alphabet. . . .

Now, of all words in the language, “the” is the most usual; let us see, therefore, whether they are not repetitions of any three characters in the same order of collocation, the last of them being 8. If we discover repetitions of such letters, so arranged, they will most probably represent the word “the.” On inspection, we find no less than seven such arrangements, the characters being ;48. We may, therefore, assume that the semicolon represents t, that 4 represents h, and that 8 represents e—the last being now well confirmed. Thus a great step has been taken.

As it is, Shannon suggested, we’re lucky that our redundancy isn’t any higher. If it were, there wouldn’t be any crossword puzzles. At zero redundancy, in a world in which RXKHRJFFJUJ is a word, “any sequence of letters is a reasonable text in the language and any two dimensional array of letters forms a crossword puzzle.” At higher redundancies, fewer sequences are possible, and the number of potential intersections shrinks: if English were much more redundant, it would be nearly impossible to make puzzles. On the other hand, if English were a bit less redundant, Shannon speculated, we’d be filling in crossword puzzles in three dimensions.

The point was not the assistant’s powers of prediction—it was that any English reader would be just as clairvoyant in the same position, reading the same sentence governed by the same silent rules. By the time the reader has reached D, she has already gotten the point. E-S-K is a formality; and if the rules of our language left us free to shut up once the point has been gotten, D would be enough. The redundancy went even further. A phrase beginning “a small oblong reading lamp on the” is almost certainly followed by one of two letters: D, or the first guess, T. In a zero-redundancy language, the assistant would have had just a 1-in-26 chance of guessing what came next, and so the next letter would have been as informative as possible. In our language, though, her odds were much closer to 1-in-2, and the letter bore far less information. And even further: the Oxford English Dictionary lists 228,132 words. Out of that twenty-volume trove of lexicography, two words were hugely probable after the short phrase that Shannon spelled out: “desk”; “table.” Once Raymond Chandler got to “the,” he had written himself into a corner. Not that he bore any fault for it: we all write and talk and sing ourselves into corners as a condition of writing and talking and singing.

Understanding redundancy, we can manipulate it deliberately, just as an earlier era’s engineers learned to play tricks with steam and heat.

Of course, humans had been experimenting with redundancy in their trial-and-error way for centuries. We cut redundancy when we write shorthand, when we assign nicknames, when we invent jargon to compress a mass of meaning (“the left-hand side of the boat when you’re facing the front”) into a single point (“port”). We add redundancy when we say “V as in Victor” to make ourselves more clearly heard, when we circumlocute around the obvious, even when we repeat ourselves. But it was Shannon who showed the conceptual unity behind all of these actions and more.

To begin with, how fast can we send a message? It depends, Shannon showed, on how much redundancy we can wring out of it. The most efficient message would actually resemble a string of random text: each new symbol would be as informative as possible, and thus as surprising as possible. Not a single symbol would be wasted. Of course, the messages that we want to send one another—whether telegraphs or TV broadcasts—do “waste” symbols all the time. So the speed with which we can communicate over a given channel depends on how we encode our messages: how we package them, as compactly as possible, for shipment. Shannon’s first theorem proves that there is a point of maximum compactness for every message source. We have reached the limits of communication when every symbol tells us something new. And because we now have an exact measure of information, the bit, we also know how much a message can be compressed before it reaches that point of perfect singularity. It was one of the beauties of a physical idea of information, a bit to stand among meters and grams: proof that the efficiency of our communication depends not just on the qualities of our media of talking, on the thickness of a wire or the frequency range of a radio signal, but on something measurable, pin-downable, in the message itself.

Perhaps we opt for the obvious solution: each letter gets the same number of bits. For a four-letter language, we’d need two bits for each letter:

A = 00

B = 01

C = 10

D = 11

But we can do better. In fact, when transmission speed is such a valuable commodity (consider everything you can’t do with a dial-up modem), we have to do better. And if we bear in mind the statistics of this particular language, we can. It’s just a matter of using the fewest bits on the most common letters, and using the most cumbersome strings on the rarest ones. In other words, the least “surprising” letter is encoded with the smallest number of bits. Imagine, Shannon suggested, that we tried this code instead:

A = 0

B = 10

C = 110

Codes of this kind—pioneered by Shannon and Fano, and then improved by Fano’s student David Huffman and scores of researchers since then—are so crucial because they enormously expand the range of messages worth sending. If we could not compress our messages, a single audio file would take hours to download, streaming Web video would be impossibly slow, and hours of television would demand a bookshelf of tapes, not a small box of discs. Because we can compress our messages, video files can be compacted to just a twentieth of their size. All of this communication—faster, cheaper, more voluminous—rests on Shannon’s realization of our predictability. All of that predictability is fat to be cut; since Shannon, our signals have traveled light.

Yet they also travel under threat. Every signal is subject to noise. Every message is liable to corruption, distortion, scrambling, and the most ambitious messages, the most complex pulses sent over the greatest distances, are the most easily distorted. Sometime soon—not in 1948, but within the lifetimes of Shannon and his Bell Labs colleagues—human communication was going to reach the limits of its ambition, unless noise could be solved.

Shannon’s paper was the first to define the idea of channel capacity, the number of bits per second that a channel can accurately handle. He proved a precise relationship between a channel’s capacity and two of its other qualities: bandwidth (or the range of frequencies it could accommodate) and its ratio of signal to noise. Nyquist and Hartley had both explored the trade-offs among capacity, complexity, and speed; but it was Shannon who expressed those trade-offs in their most precise, controllable form. The groundbreaking fact about channel capacity, though, was not simply that it could be traded for or traded away. It was that there is a hard cap—a “speed limit” in bits per second—on accurate communication in any medium. Past this point, which was soon enough named the Shannon limit, our accuracy breaks down. Shannon gave every subsequent generation of engineers a mark to aim for, as well as a way of knowing when they were wasting their time in pursuit of the hopeless. In a way, he also gave them what they had been after since the days of Thomson and the transatlantic cable: an equation that brought message and medium under the same laws.

This would have been enough. But it was the next step that seemed, depending on one’s perspective, miraculous or inconceivable. Below the channel’s speed limit, we can make our messages as accurate as we desire—for all intents, we can make them perfectly accurate, perfectly free from noise. This was Shannon’s furthest-reaching find: the one Fano called “unknown, unthinkable,” until Shannon thought it.

How did the faltering transatlantic telegraph operators attempt to deal with the corruption of their signal? They simply repeated themselves: “Repeat, please.” “Send slower.” “Right. Right.” In fact, Shannon showed that the beleaguered key-tappers in Ireland and Newfoundland had essentially gotten it right, had already solved the problem without knowing it. They might have said, if only they could have read Shannon’s paper, “Please add redundancy.”

A = 00000

B = 00111

C = 11100

D = 11011

Now any letter could sustain damage to any one bit and still resemble itself more than any other letter. With two errors, things get fuzzier: 00011 could be either B with one flipped bit or A with two. But it takes fully three errors to turn one letter into another. Our new code resists noise in a way our first one did not, and does it more efficiently than simple repetition. We were not forced to change a single thing about our medium of communication: no yelling across a crowded room, no hooking up spark coils to the telegraph, no beaming twice the television signal into the sky. We only had to signal smarter.

In time, the thoughts developed in these seventy-seven pages in the Bell System Technical Journal would give rise to a digital world: satellites speaking to earth in binary code, discs that could play music through smudges and scratches (because storage is just another channel, and a scratch is just another noise), the world’s information distilled into a black rectangle two inches across.

We sort the mail, build sand castles, solve jigsaw puzzles, separate wheat from chaff, rearrange chess pieces, collect stamps, alphabetize books, create symmetry, compose sonnets and sonatas, and put our rooms in order. . . . We propagate structure (not just we humans but we who are alive). We disturb the tendency toward equilibrium. It would be absurd to attempt a thermodynamic accounting for such processes, but it is not absurd to say that we are reducing entropy, piece by piece. Bit by bit.

In pursuing all of this order, we render our world less informative, because we reduce the amount of uncertainty available to be resolved. The predictability of our communication is, in this light, the image of a greater predictability. We are, all of us, predictability machines. We think of ourselves as incessant makers and consumers of information. But in the sense of Shannon’s entropy, the opposite is true: we are sucking information out of the world.

Yet we are failing at it. Heat dissipates; disorder, in the very long run, increases; entropy, the physicists tell us, runs on an eternally upward slope. In the state of maximal entropy, all pockets of predictability would have long since failed: each particle a surprise. And the whole would read, were there then eyes to read it, as the most informative of messages.

These were only some of the insistent questions that trailed after Shannon’s theory. Shannon himself—even while courting them with the use of such a tantalizing term, or metaphor, as “entropy”—almost always dismissed these puzzles. His was a theory of messages and transmission and communication and codes. It was enough. “You know where my interests are.”

But in his insistence on this point, he ran up against a human habit much older than him: our tendency to reimagine the universe in the image of our tools. We made clocks, and found the world to be clockwork; steam engines, and found the world to be a machine processing heat; information networks—switching circuits and data transmission and half a million miles of submarine cable connecting the continents—and found the world in their image, too.
